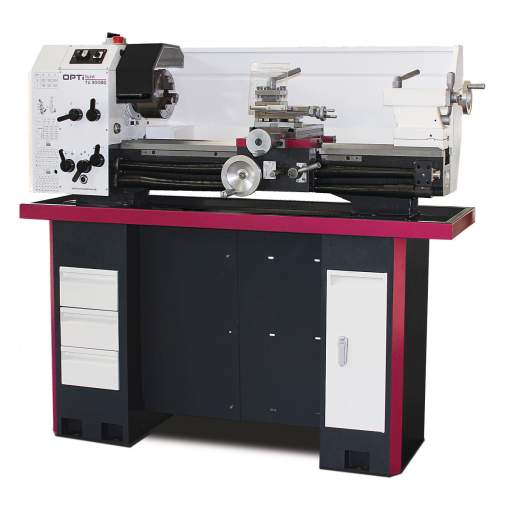

NEW Optimum OPTIturn TU 3008G Manual Metalworking Lathe (3 Phase 400v)
£5,374.80
Features:
- Precise processing
- Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground
- Hardened and ground Z-axis guideway
- Smooth-running feed gear with rounded gears running in an oil bath
- Guaranteed concentricity of the spindle nose better than 0.009 mm
- Concentricity on the lathe chuck better than 0.04 mm
- Quadruple tool holder
- All guides can be adjusted by wedge strips
- Right / left rotation in the control panel switchable
- Hardened main spindle mounted in adjustable, precision tapered roller bearings
- Tapered roller bearings in P5 quality
- Hardened spindle nose
- Large spindle bore Ø 38 mm
- Lead screw for thread cutting or automatic longitudinal turning
- Guide and feed shaft stored in two sintered bearings
- Automatic longitudinal / flat feeds
- Lead screw and tension spindle cover
- Tailstock for taper turning ± 5 mm adjustable
- Tailstock quill and handwheel with adjustable fine scale 0.02 mm
- Fast, easy and tool-free adjustment by means of a clamping lever
- Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm
- Change wheel set in the standard scope of supply for thread cutting
- Emergency stop impact switch
TU 3008
- fan belt
Included as Standard:
• 160mm 3 Jaw Chuck
• Fixed Centres MT3 & MT4
• Splash Guard
• Chip Tray
• 4 Way Indexable Tool Holder
• Set of Interchangeable Gears.
