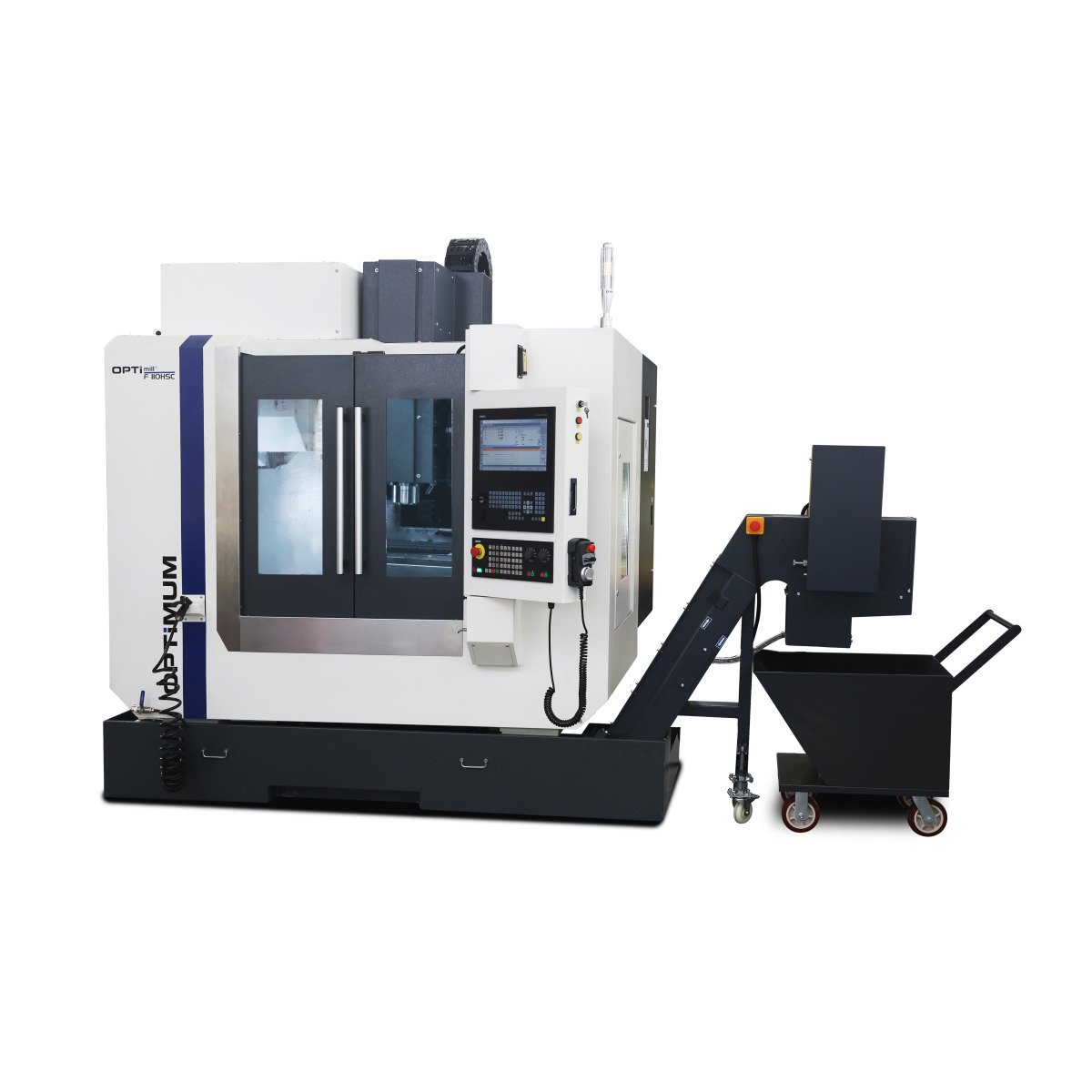

Optimum OPTImill F 110HSC CNC milling machine

• Heavy-duty design
• High productivity
• High reliability
• Heavily ribbed, torsion-free machine base
• Profiled rail with recirculating ball bearing for high rapid traverse speeds in all axes
• High-torque servo drives in all three axes
• Telescopic guideway cover on all three axes
• Automatic lubrication
• Massive, exact milling table with three T-slots, large dimensions and precision-ground
• The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
• Coolant device with chip flushing system and cleaning gun
• Chip conveyor in belt design ensures efficient chip removal
• Chip trolley
• RJ45 plug connection and 230 V power connection
• Closed switch cabinet with integrated heat exchanger ensures optimum temperature and prevents the ingress of dirt particles
• Machine light in the work area
• Additional package SIEMENS material liability for defects and free online/on-site service OSS Plus
• 1-year Basic maintenance contract included in D/A/CH

SINUMERIK 828D
High-tech for the compact class

The use of two independent tools makes 4-axis turning – balance cutting – possible. The new functions include multi-channel capability with ShopTurn, which allows, among other things, the synchronization of programs with programSYNC. The new software offers the option of running two channels simultaneously in turning and grinding machines.
SINUMERIK CNC controlSinumerik 828D Basic sets standards in all aspects of machining performance. Whether accuracy and speed, reduction of cycle times or energy efficiency and safety – SINUMERIK sets the pace.

Communicative

• Front interfaces: USB 2.0, RJ45 Ethernet, Compact Flash (CF) Card

16 function keys

• The 8 horizontal and 8 vertical softkeys allow you to access all operating screens with just a few keystrokes

User-friendly

• Full QWERTY keyboard
• Hard keys with protective film
• IP65 protection class

Functional safety also protects against high costs!
Machine and system safety is not only important because strict regulations must be observed. When everything runs safely, you benefit from time savings in engineering, higher system availability and greater investment security.

Control system

• 10.4″ color display
• 4:3 format
• User-friendly SINUMERIK
• Operate software

System software

• SW 26X5
• MB CNC memory2
• ms block change time100
• Look Ahead256
• tools

Complete package

• Safety Integrated
• Residual material detection and machining
• ShopMill work step programming
• Manage network drive
• 3-D simulation
• Co-drawing

Additional package Siemens OSS PLUS

• 12 months; article no. 3589020
• 24 months; article no. 3589021
• 36 months; article no. 3589022

Information on this additional package and conditions for use can be found at: Material Defects Liability and On-Site Service – SiePortal – Siemens WW

Inline spindle

• The direct connection between spindle and motor increases the surface quality and thermal stability.
• Mounting SK 40 / DIN 69871
• Spindle speed 12,000 min-1

Linear guide

• Maximum static and dynamic rigidity
• High positioning accuracy
• Smooth, backlash-free movement

Milling table

• Solid, precise and generously dimensioned
• Clamping surface 850 x 400 mm
• Precisely surface-finished

Cast body

• Quality cast iron in ribbed design

Machine feet

• Six pieces
• Optimum alignment of the machine
