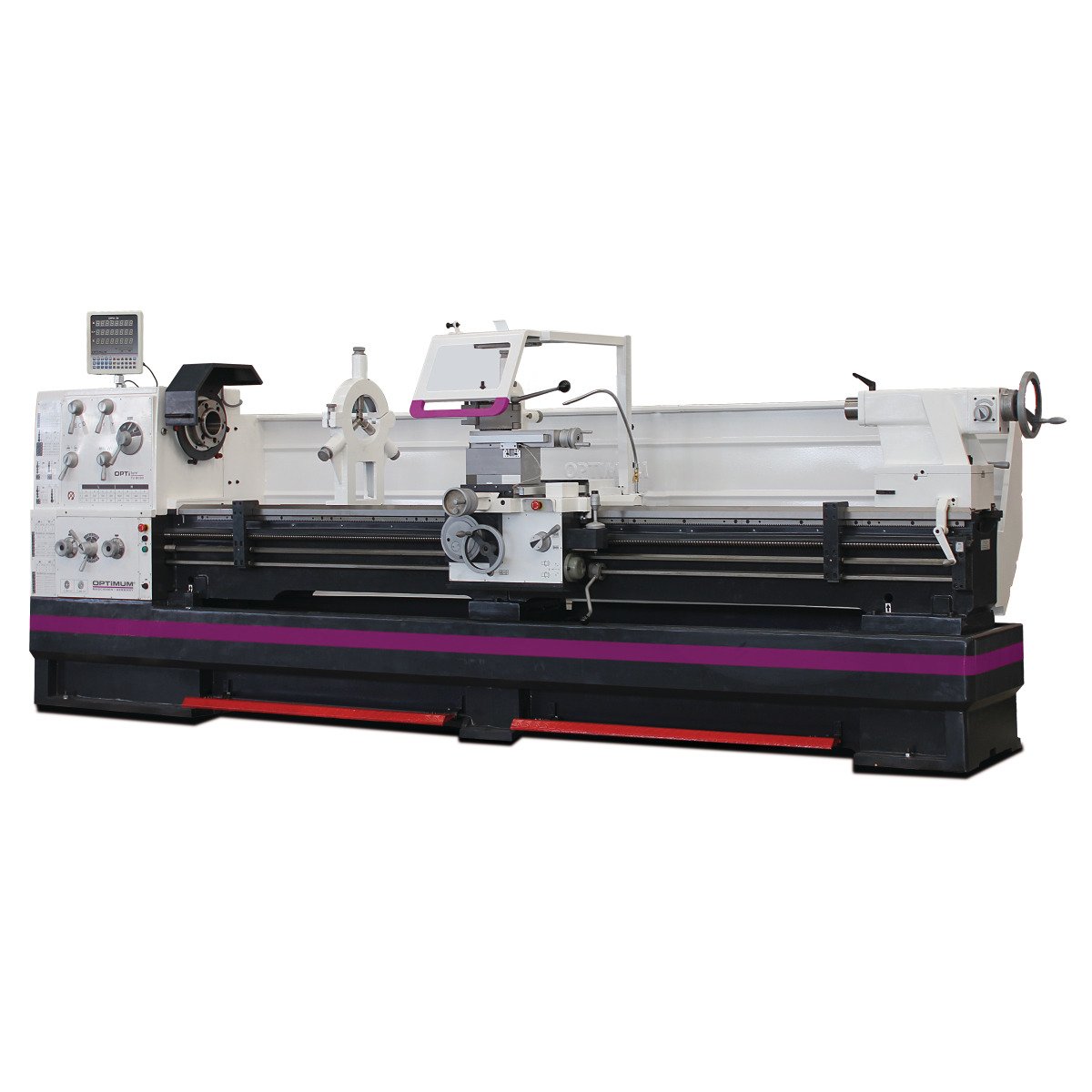

Optimum OPTIturn TH 8030D Centre and spindle lathe Heavy Duty Manual Metalworking Lathe
£49,510.80
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Spindle holder Camlock DIN ISO 702-2 No. 8
- Lead screw cover
- Precisely machined slide
- All guides can be adjusted using wedge strips
- Right/left rotation on bed slide switchable via switching spindle
- Two-channel safety electronics
- Upper slide adjustment range ± 90
- Smooth-running, hardened and ground gear wheels mounted on 2 adjustable precision tapered roller bearings
- Clearly arranged selector lever for switching the feed speeds
- Closed design of the high-speed feed gearbox
- Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings
- Handwheels decoupled and tested in accordance with EN 23125
- Safety handwheels with disengagement function in the X-axis
- Handwheels with adjustable fine scaling 0.04 / 0.02 mm
- Safety limit switch with positive opening contacts
- Switch with life cycle calculation, tested in accordance with EN ISO 13849
- Central lubrication in the bed slide
- Emergency stop switch, motor protection switch, lockable main switch
- LED machine lamp
- Energy chain for gentle cable and hose routing
- Emergency stop device with foot control
- Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
- Electric motor brake with quick emergency stop – quick stop without overrun during normal operation
- Electrical system with Siemens components
- Quick-change steel holder SWH 9-D
- 1 steel holder 41 x 180 type D for square chisel 32 mm
