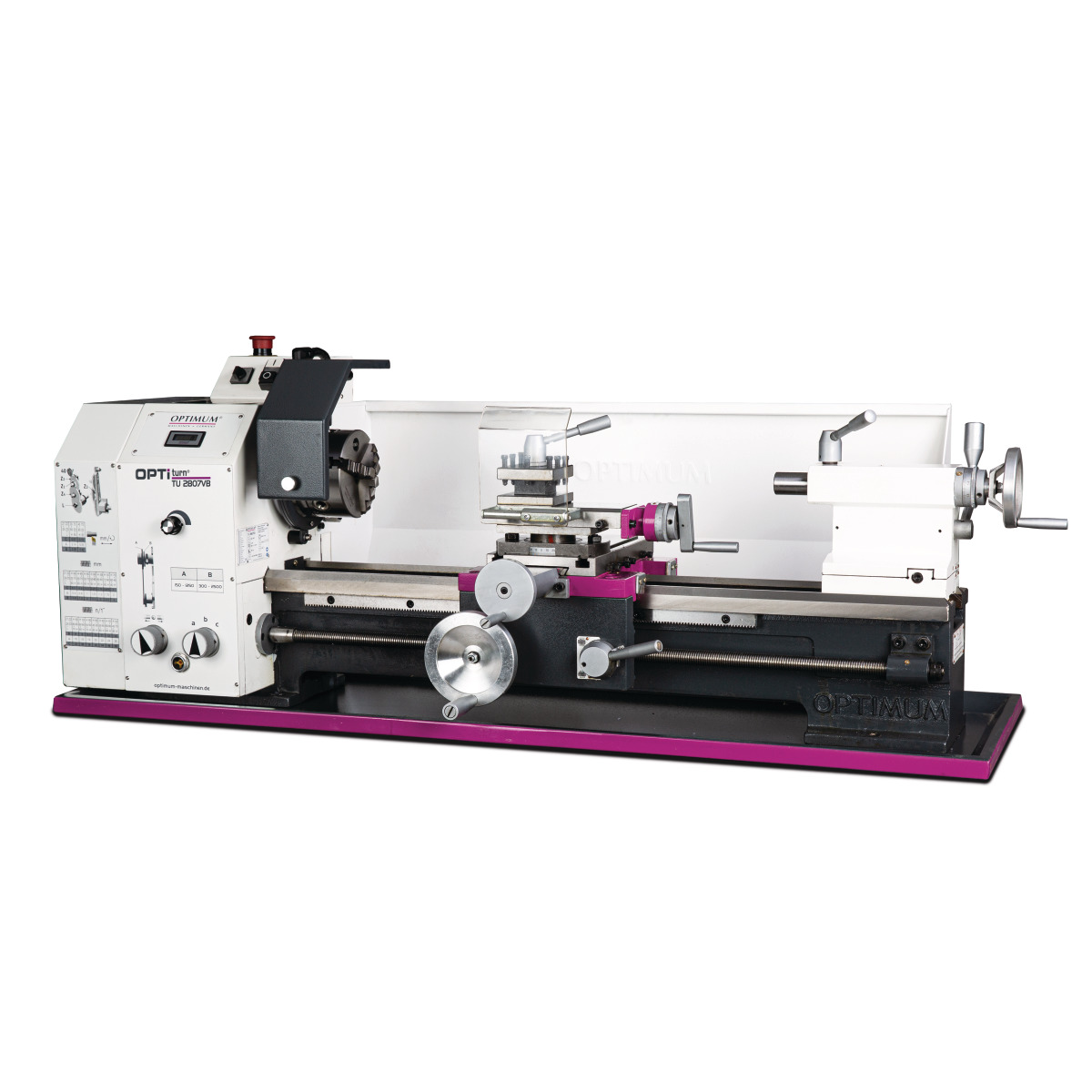

Optimum TU 2807VB Medium Metalworking Duty Precision Lathe (1 Ph 230v)

Features

• Precise processing
• Powerful, maintenance-free engine
• Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground
• Smooth-running feed gear with rounded gears running in an oil bath
• Hardened and ground Z-axis guideway
• Guaranteed concentricity of the spindle nose better than 0.009 mm
• Concentricity on the lathe chuck better than 0.04 mm
• Automatic longitudinal / lead screw drive
• Lead screw for thread cutting or automatic longitudinal turning
• Quadruple tool holder
• All guides can be adjusted by wedge strips
• Right / left rotation in the control panel switchable
• Hardened main spindle mounted in adjustable precision tapered roller bearings
• Tapered roller bearings in P5 quality
• Hardened spindle nose with Ø 26 mm spindle bore
• Rolled trapezoid spindles
• Chip protection on the upper slide
• Upper slide on cross slide slidable
• Tailstock for taper turning ± 5 mm adjustable
• Tailstock quill and handwheel with adjustable fine scale 0.02 mm
• Fast, easy and tool-free adjustment by means of a clamping lever
• Leadscrew stored in two sintered bearings
• Change gear set in standard scope of supply for thread cutting
• Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm
• thrust bearing
• 3-jaw lathe chuck in the standard scope of delivery
• Emergency stop impact switch
• Fully equipped, allowing the user to be productive immediately after commissioning
• Speed change easily adjustable via potentiometer
• Digital speed display
• EMC filter class C1
